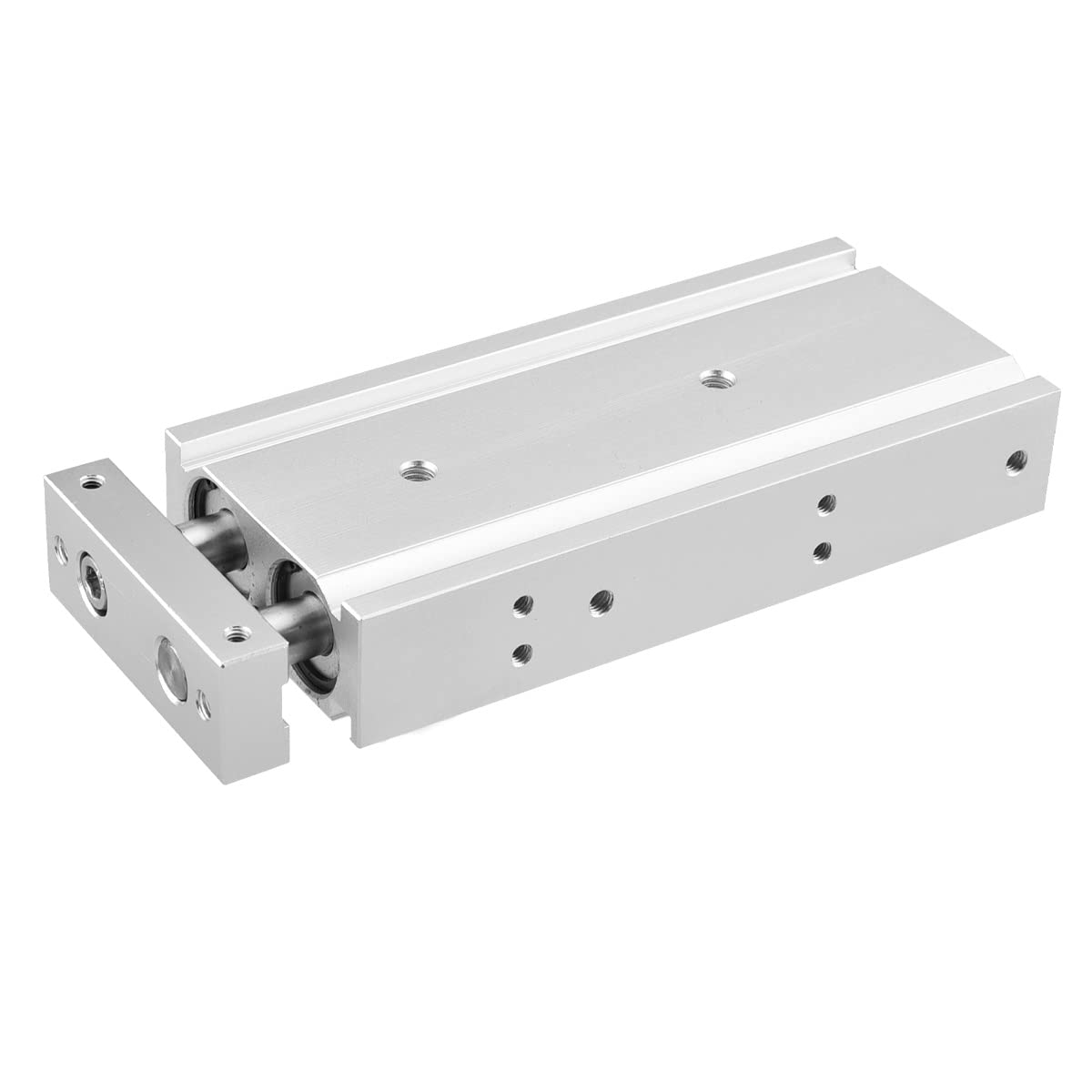

Heschen CXSM 20-70 Dual Rod Air Cylinder, 20mm Bore x 70mm Stroke, Guided Pneumatic Actuator with Magnet, Double Acting Slide Bearing, PT 1/8 Port, Industrial Automation Replacement
Product details
| Management number | 231281228 | Release Date | 2026/06/18 | List Price | US$12.11 | Model Number | 231281228 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [High Precision Dual-Rod Structure] The dual-rod design with an integrated guide plate provides twice the output thrust compared to single-rod cylinders. Engineered with precision slide bearings (M type), it delivers an exceptional non-rotating accuracy of ±0.1°, preventing the 10mm piston rods from twisting throughout the entire stroke
- [Rugged Industrial Construction] Crafted from high-strength aluminum, this cylinder offers superior wear and corrosion resistance. It features an optimal working pressure range of 0.1 to 0.8 MPa (approx. 15-116 PSI), ensuring smooth and reliable operation in heavy-duty automated machinery over a wide temperature range of 5 to 60°C
- [Versatile 4-Way Mounting] Designed for maximum flexibility, the cylinder body can be fixed with bolts in 4 different directions to suit tight machine spaces。Equipped with a standard Rc(PT) 1/8 air port, it serves as a seamless drop-in replacement for standard CXSM series actuators
- [Smooth Motion & Adjustable Stroke] Equipped with built-in rubber cushions at both ends to effectively absorb impact and reduce operating noise during high-speed cycles。Additionally, it features a convenient retract stroke adjustment range of 0 to 6mm, allowing for precise mechanical fine-tuning
- [Position Sensing Ready] Includes a built-in magnetic ring for reliable position feedback. It is compatible with standard magnetic switches such as D-Z73L, D-Z76L, D-Z80L, D-Y59AL, and D-Y59BL, enabling precise synchronization with your PLC systems
| ASIN | B07L2LFC8Z |
|---|---|
| Item Weight | 1.34 pounds |
| Manufacturer | Heschen Pneumatic Co.Ltd |
| Package Dimensions | 7.64 x 4.02 x 1.18 inches |
| Is Discontinued By Manufacturer | No |
